Picture Hanging Company

Clip Mounting Fitting, for Picture Rail Hanging Track (Installation Clip)

Clip Mounting Fitting, for Picture Rail Hanging Track (Installation Clip)

Regular price £0.42 GBP
Regular price Sale price £0.42 GBP
Sale Sold out
Shipping calculated at checkout.

What's Included :

1Mounting Clips

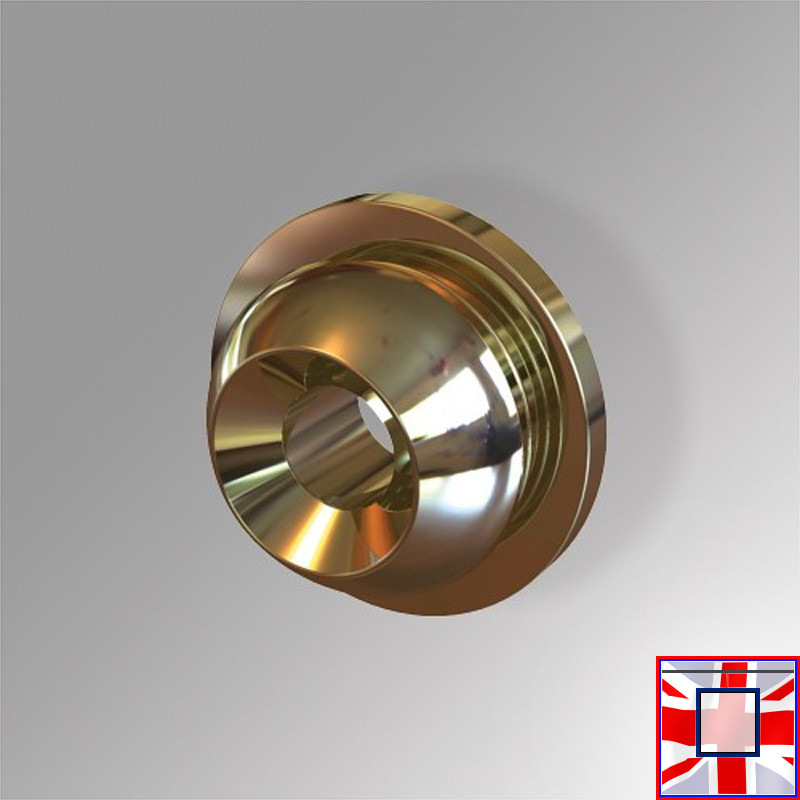

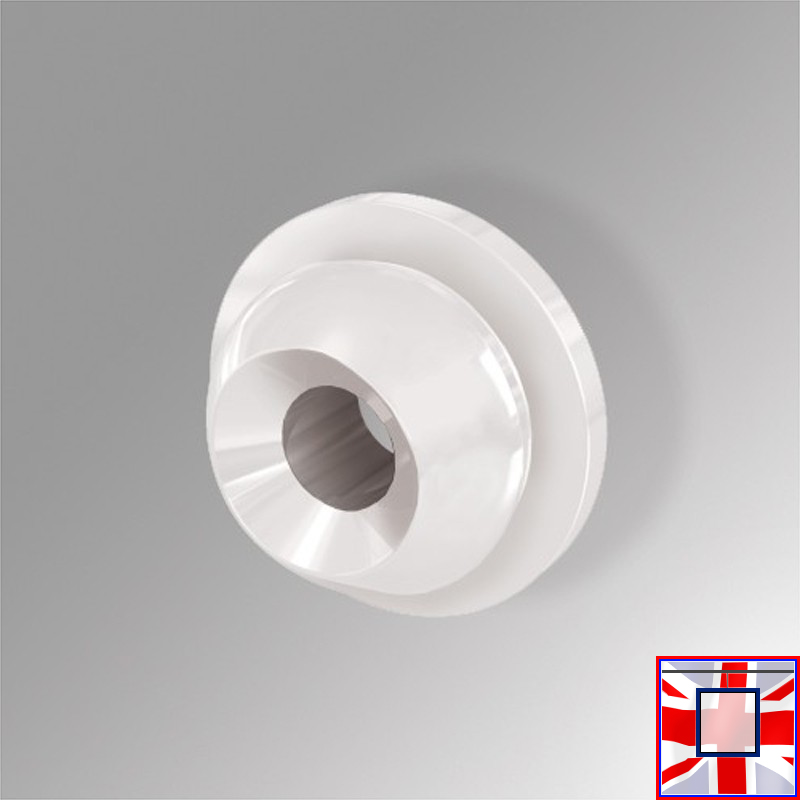

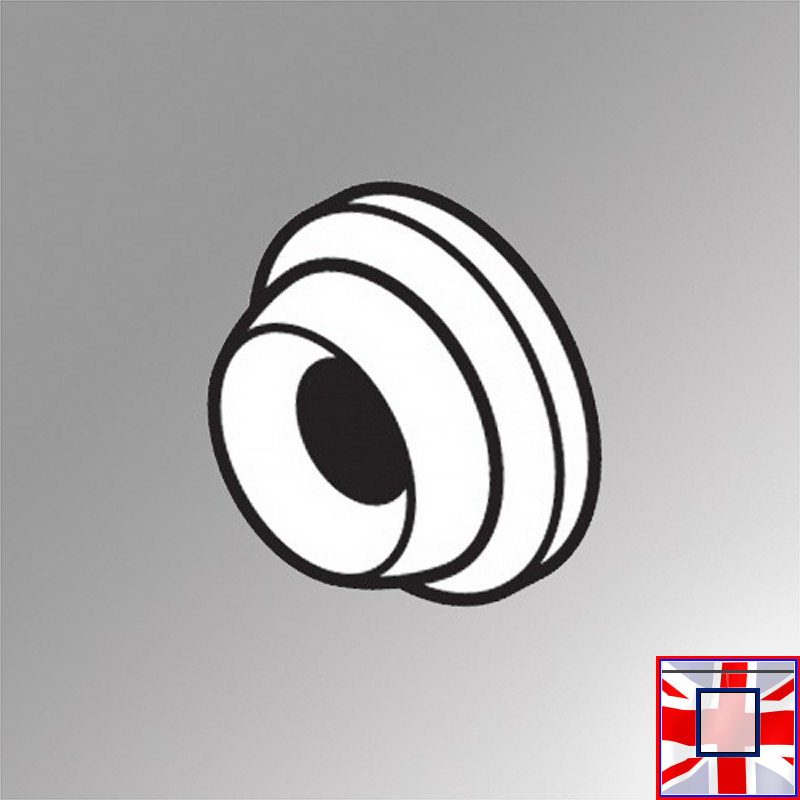

Available in two types: Nylon (white) and Heavy Duty Brass

Mounting clips are essential for installing the clip rail picture hanging track onto the wall. Available in standard nylon (white) and heavy-duty brass, these clips are screwed directly into the wall. The picture rail then clips onto them securely. Nylon clips require 4 per meter, while heavy-duty brass clips require only 3 per meter.

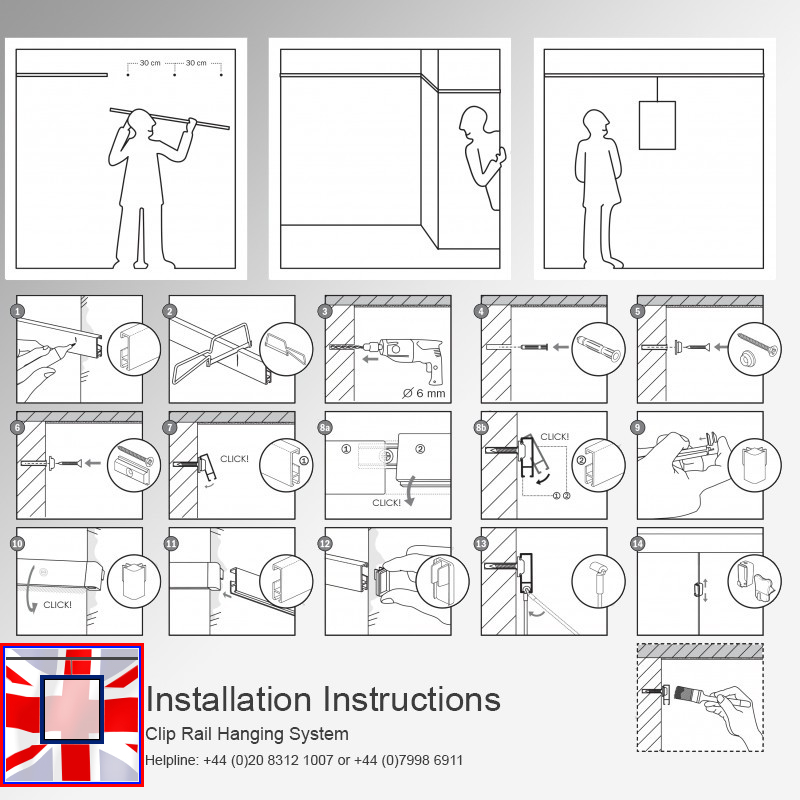

Mounting Clip Installation:

Mark points along the wall where you require the tracking (nylon every 20 cm, brass every 30 cm).
Drill holes at the marked points and insert wall plugs.
Screw the mounting clips into the wall, ensuring the flat side is against the surface.
Repeat the process for each drilled hole.

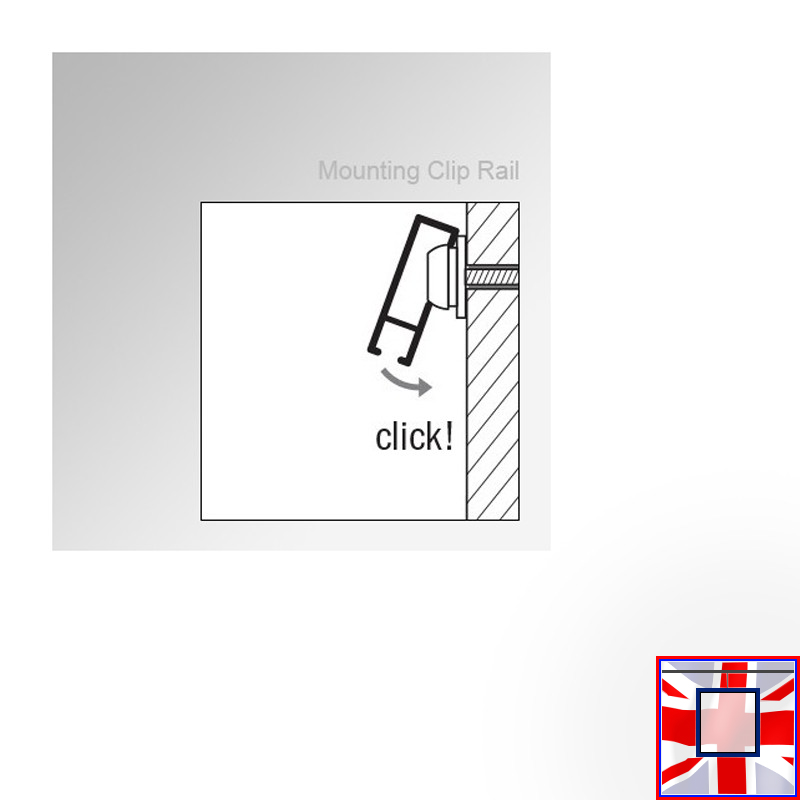

Place the top edge of the picture rail's rear slot over the mounting clips and push down.
The picture rail will 'click' securely onto the clips.
